Water Blasting Systems

HIPAQ A/S is known for supplying high-quality, bespoke turnkey solutions for offshore oil & gas, marine and industrial applications worldwide.

HIPAQ A/S benefits from more than 30 years of experience as designers and manufacturers of customized high pressure pumping and air compressor systems.

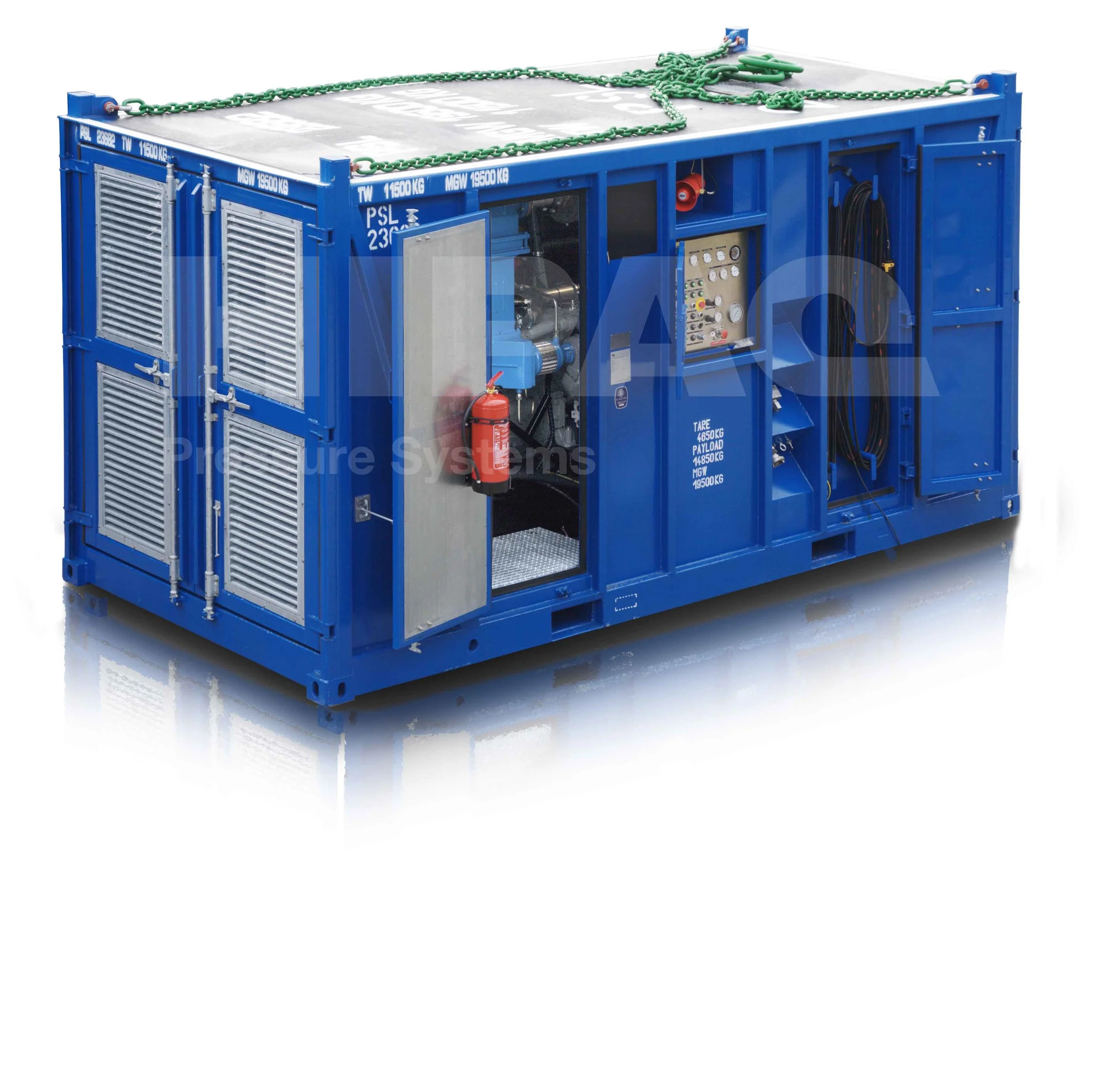

Water Blasting System for EX Zone 1 in offshore rigs and drillships. Customized design for limited installation space.

The systems can be supplied as standard framed or containerized according to DNV 2.7-1, 2.7-2 or 2.7-3. One pump or multiple pump systems. Variable speed drive. Pressure regulator for pressure adjustment from 0 bar to max. pressure.

One user or simultaneous users. Small footprint and low weight. Approval according to all major classi cation societies.

Waterblaster zone 2.jpg

Pump type: Triplex Plunger

Driving force: Electrically Driven

Pressure: 500-3,000 bar

Flow: 10-600 L/min

Power: 10-500 kW

Media: Hot or Cold Water

Tank with heater: Optional

EX approval: Zone 1

Standards: NORSOK, API, DNV, etc.

Control: Automatic Start/Stop

Size: 2.5 x 1.9 x 1.8 m
